M222 Hereaus Brand Thin Film Pt100 Class A M222 manufacturer from China Beijing ShengRuiKe Automstion Equipment Co., Ltd.

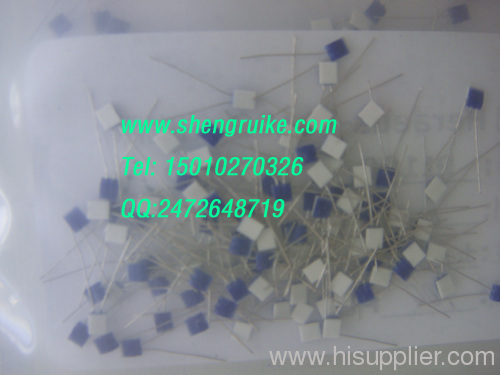

M222 Hereaus Brand Thin Film Pt100 Class A

Price:	2.0~3.0 USD
Payment Terms:	T/T,WU,
Place of Origin:	Beijing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: M222

Production Capacity: 1000000PCS

Delivery Date: 3 days

Name: Pt100 Thin Film

Temperature: -50-300C

Means of Transport: Air,

Packing: Paper Carton

Brand Name: Hereaus

Class: A

1.M222 Thin film Pt100
2.Class A
3.Hereaus Brand
4.-50 to 300C

Specifications

1.Thin Film Pt100 Element
2.Class A
3.Temperature:-70-500C
4.Lead lengths10mm
5.TC = 3850 ppm/K

I. Pl atinum Resistance Temperature Detector

II.Introduction

Mseries PRTDs are designed for large volume applications where long term stability, interchangeability and accuracy over a large temperature range are vital. Typical applications are Automotive, White goods, HVAC, Energy management, Medical and Industrial equipment.

III.Specifications

1.Specification DIN EN 60751 (according to IEC 751)

2.Temperature range -70°C to +500°C (continuous operation)(temporary use to 550°C possible)

Tolerance Class B: -70°C to +500C

Tolerance Class A: -50°C to +300C

Tolerance Class 1/3 B: 0°C to +150°C

3.Temperature coefficient TC = 3850 ppm/K

4.Leads Pt clad Ni- wire
